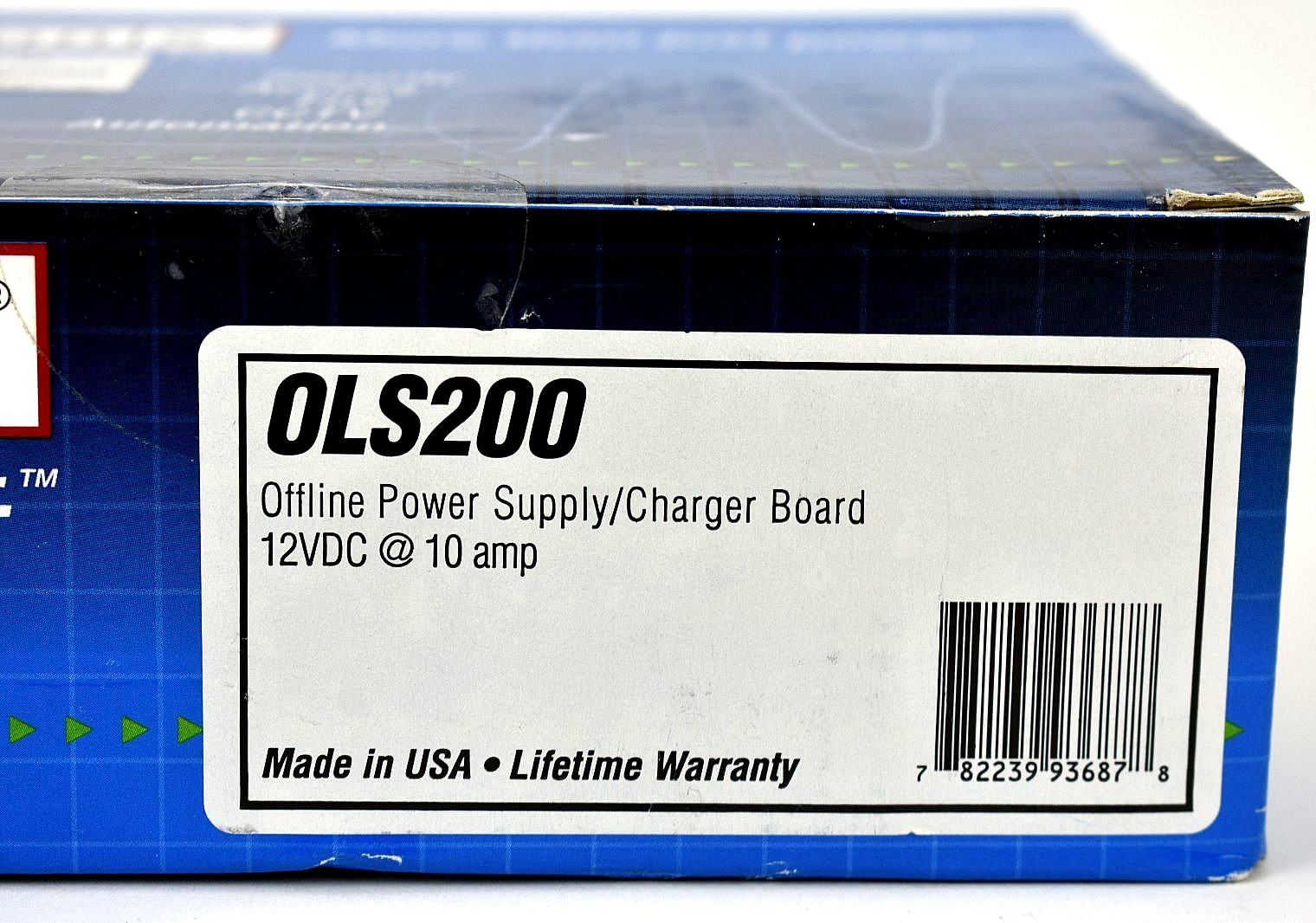

Altronix OLS200 12VDC 10A Power Supply Charger Board Access Control

Altronix OLS200 Offline Switching Power Supply / Charger Board designed to convert 115VAC input power into a regulated 12VDC output at up to 10 amps continuous current. This power supply board is widely used in access control systems, CCTV installations, security systems, alarm panels, and electronic door hardware requiring reliable DC power.

The OLS200 includes an integrated battery charger for sealed lead-acid or gel batteries, allowing the system to automatically switch to backup battery power in the event of AC power failure.

Because Altronix power supplies are commonly used in commercial security infrastructure, these boards are frequently purchased as direct replacement units for existing access control or surveillance systems.

Confirmed Specifications

• Manufacturer: Altronix Corporation

• Model: OLS200

• Product Type: Offline Switching Power Supply / Charger Board

• Input Voltage: 115VAC (90–132VAC operating range)

• Input Frequency: 50/60 Hz

• Input Current: 1.9 A

• Output Voltage: 12 VDC

• Continuous Output Current: 10 A

• Output Type: Filtered and electronically regulated

• Protection Features:

  • Short circuit protection

  • Thermal overload protection

• Battery Backup:

  • Built-in charger for sealed lead-acid or gel batteries

  • Automatic failover to standby battery during AC loss

  • Maximum charge current 0.7 A

• Supervision Outputs:

  • AC fail supervision (Form C contacts)

  • Low battery supervision (Form C contacts)

• Indicators:

  • AC input LED

  • DC output LED

• Board Dimensions: 7.25 in × 4.5 in × 1.75 in

• Weight: ~0.8 lb (0.36 kg)

• Operating Temperature: 32°F to 120°F (0°C to 49°C)

• Compliance: CE

Common Applications

• Access control systems

• Electronic door locks / maglock power

• CCTV security systems

• Alarm panels and security accessories

• Security system backup power supplies

• Industrial low-voltage DC power distribution

Model Family / Replacement Searches

Altronix access control and security power supply series often searched by installers and maintenance technicians:

• OLS200

• AL400

• AL600

• AL1024ULX

• SMP series power supplies

These units are commonly purchased as replacement boards for existing security and access control installations.
